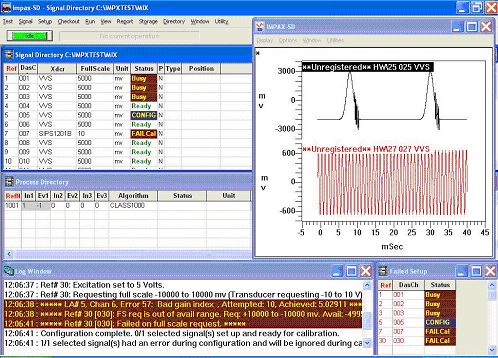

impax sd

  • 32 bit native application, WinXP Professional recommended
  • New Windows enhancements to save windows sizes and state
  • Supports 1394 firewire VXI interface for laptops & portable VXI chassis
  • Right-click context menus added for additional flexibility
  • Color-coded signal status for quick identification/errors appear in red
  • Ability to highlight & select multiple signals for set up
  • Supports analysis of Jaguar .tpd data file
  • Supports all SD-VXI high speed cards
  • New auto-detect hardware feature builds tests quickly
  • “Safe Mode” shut down to isolate inputs from outside world
  • Trigger Dialog lets you configure the trigger settings for masters/slaves
  • Transducer grids display the manufacturer and part number
  • Shunt emulation during calibration
  • Supports SIPS constant current cards
  • Excitation level defined as transducer characteristic, not channel characteristic
  • Concurrent device support for VX2850, all SD-VXI cards, ZT400, and CAMAC
  • Includes SD Plot graphic package
