Shakers - Air Cooled

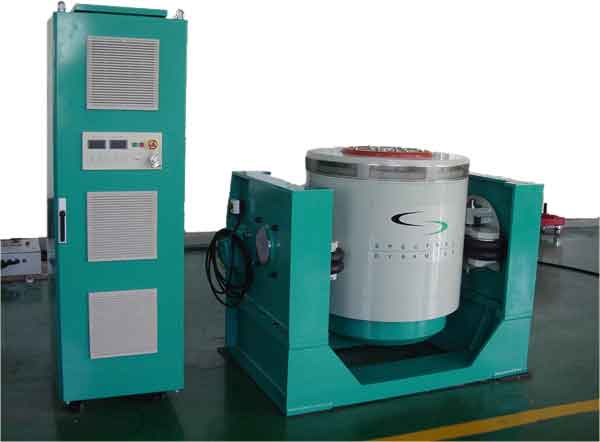

The Air Cooled Series Vibration test systems are a
versatile wide frequency range electrodynamic
vibration test system which feature the following:
- Large diameter, lightweight armature
- Double Field Coils (Upper and Lower) design
- Ultra-Compact energy efficiency amplifier
- Available combined with slip table
- Sine, Random, and Transient Testing
- Standard cooling blower silencer
- Standard Vertical and Horizontal Operation
Long Stroke, High Force Shaker Series
Part Number
|
Force
|
Peak to Peak Displacement
|
Technical Specs
|
| SD-8360LS4-17/DA-60* |
8360 lbs (3800 kgf) |
4 Inches (100 mm) |
 |
*(Long Stroke also available for 4400/6600/11000/13200/15400 Lbs Force Shakers)
Low Force Shaker Series
Part Number
|
Force
|
Peak to Peak Displacement
|
Technical Specs
|
| SD-220-5/DA-1 |
220 lbs (100 kgf) |
1 inch (25 mm) |
|
| SD-440-6/DA-2 |
440 lbs (200 kgf) |
1.5 Inches (38 mm) |
|
| SD-660-6/DA-3/ACU751 |
660 lbs (300 kgf) |
1.5 Inches (38 mm) |
|
| SD-1518-7/DA-6/ACU402* |
1518 lbs (690 kgf) |
2 Inches (50 mm) |
|
| SD-1510-230M/SPA602HB/ACU402 |
690 kgf (1,510 lbf) |
2 Inches (51 mm) |
|
| SD-1510-230M/SPA602LB/ACU402 |
690 kgf (1,510 lbf) |
2 Inches (51 mm) |
|
| SD-1510-230M/SPA602MB/ACU402 |
690 kgf (1,510 lbf) |
2 Inches (51 mm) |
|
| SD-1510-230M/SPA602SB/ACU402 |
690 kgf (1,510 lbf) |
2 Inches (51 mm) |
|
*(7" and 9" Armature Dia available)
Medium Force Shaker Series
Part Number
|
Force
|
Peak to Peak Displacement
|
Technical Specs
|
| SD-2420-9/DA-10 |
2420 lbs (1100 kgf) |
2 Inches (50 mm) |
|
| SD-5280-13/DA-20 |
5280 lbs (2400 kgf) |
2 Inches (50 mm) |
|
| SD-8360-13/DA-40 |
8360 lbs (3800 kgf) |
2 Inches (50 mm) |
|
| SD-8360LS4-440M/SPA403/ACU153 |
8360 lbs (3800 kgf) |
4 Inches (100mm) intermittent,
3 Inches (75mm) continuous |
|
High Force Shaker Series
Click here to view the technical specifications of the High Force shakers in PDF format.
*You will need to have a username and password to access this portion of the site.
Please contact,
This email address is being protected from spambots. You need JavaScript enabled to view it.
Request access using our Contact Form.
with the following information: Name, Phone, Email, and Company to receive log in information. You can login at the bottom of the page here.
Part Number
|
Force
|
Peak to Peak Displacement
|
| SD-11000-17/DA-50 |
11000 lbs (5000 kgf) |
2 Inches (50 mm) |
| SD-11000LS3-445M/SPA503/ACU153 |
11000 lbs (5000 kgf) |
3 Inches (75 mm) intermittent 2.5 Inches (63.5 mm) continuous |
| SD-13200-17/DA-60 |
13200 lbs (6000 kgf) |
2 Inches (50 mm) |
Laboratory Shaker Series
Part Number
|
Force
|
Peak to Peak Displacement
|
Technical Specs
|

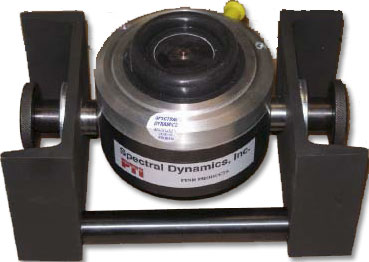

| M1600W |
200 N Sine Vector (140N Random) |
.75 Inches (19.2 mm) |
|
NOTE: In keeping with our commitment to continuous product improvement, the information herein is subject to change.
|
