Advanced Multi-exciter Dynamic Testing since 1961

Easy Data Conversion

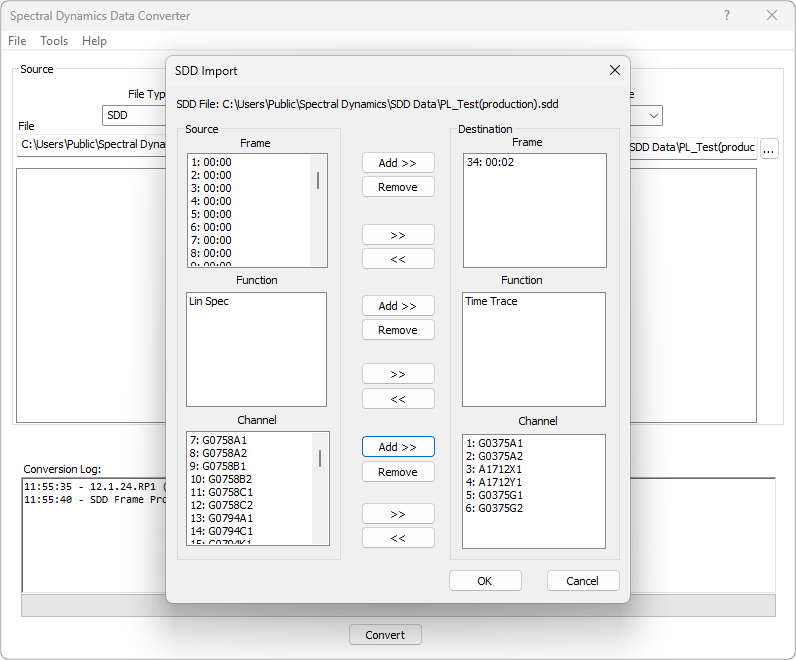

Spectral Dynamics' Data Conversion utility can be used to convert data files to different file formats for importing/exporting between applications. Common data types such as ASCII (text file), UFF (Universal File Format), MATLAB, ASAM XML are all supported for both import for Spectral Dynamics' applications to use or export for external applications.





Supported Data Types

Description

ASAM

XML based data (www.asam.net)

ASCII

Text data containing Y values with option X value column. This supports a single stream or frame of data.

MAT

Matlab data (www.mathworks.com)

SDD

Spectral Dynamics Data used in applications that support frame-based data. An SDD file may contain one or multiple frames.  Each frame may contain one or more function types and with each function type there are associated channels.

STX

Spectral Dynamics Data used in applications that support time based stream data.

UFF

Universal File Formats is a file format originally developed by the Structural Dynamics Research Corporation (SDRC) to standardize data transfer between computer aided design (CAD) and computer aided test (CAT) software packages.
