How to Choose a Vibration Test Controller: Buyer's Guide and Evaluation Checklist
A vendor-neutral guide to evaluating vibration test controllers (shaker controllers) for aerospace, defense, automotive, electronics and industrial environmental test labs.
The short answer
The best vibration test controller for a lab is the one that runs every test type you need in one software suite, delivers verified end-to-end dynamic range of at least 110 dB, scales in channel count without replacing hardware, protects the test article with multi-parameter real-time safety, records gap-free data in every test mode, and comes from a manufacturer with a long record of supporting its products. Evaluate candidates on ten areas: applications, hardware, control algorithms, safety, data handling, ease of use, integration, scalability, support and total cost of ownership. Each is covered below with the questions to ask and what a good answer sounds like.
What is a vibration test controller?
A vibration test controller, also called a shaker controller or vibration control system, is the instrument that drives an electrodynamic or hydraulic shaker in closed loop. It measures the response of accelerometers on the test article, compares it with the test specification, and continuously corrects the drive signal so the article experiences exactly the specified random, sine, shock or field-recorded vibration. It is used for product qualification, environmental stress screening and durability testing to standards such as MIL-STD-810, RTCA DO-160, IEC 60068, ISO, DIN and ASTM.
It is not the same as a vibration isolation or damping system (mounts, isolators, dampers), which reduce vibration rather than reproduce it. Buyers searching for "vibration control systems" for a test lab need a vibration test controller.
1. Start with your applications
Before comparing hardware or software, list the vibration tests you run today and the ones you expect to run in the next five to ten years. Application requirements should drive the technology choice, not the other way around.
Basic test types
- Swept and stepped sine: resonance identification and frequency response.
- Random vibration: broadband energy simulating transportation and operating environments.
- Classical shock: half-sine, sawtooth, trapezoidal and other pulses.
- SRS (shock response spectrum) synthesis: pyrotechnic and mechanical shock reproduced on a shaker.
- Resonance search, track and dwell (RSTD): automated resonance detection and dwell at tracked resonances.
Advanced and combined test types
- Kurtosis (non-Gaussian) random: random vibration with controlled peak content that matches real road and flight environments more closely than Gaussian random.
- Sine-on-random (SoR) and random-on-random (RoR): narrow-band sine tones or random bands superimposed on broadband random.
- Mixed mode: multiple sine tones and narrow bands combined with a random background.
- Time-history replication and road simulation: reproduction of measured field and proving-ground data.
- Gunfire (repetitive shock): for example MIL-STD-810 Method 519 gunfire shock.
- Force-limited vibration: limiting input force to avoid over-testing at fixture and article resonances.
- MIMO multi-shaker and multi-axis control: coordinated control of several shakers or degrees of freedom.
- Automated test sequencing: mission profiles that run several test types in order without operator intervention.
Analysis on the same platform
Many labs also need modal analysis, acoustic analysis, rotating machinery analysis or turbine balancing. A controller whose data acquisition hardware also runs these applications avoids a second system, a second training program and the effort of keeping two data sets in sync.
Most vendors offer the basic test modes, with advanced modes as options. The real differentiator is how easily the modes are configured, monitored and correlated within one software environment. Systems that need separate applications for different test types increase training and operating complexity.
- Are all the test modes I need supported in one software suite?
- A good answer is a single application environment covering sine, random, shock, SRS, combined modes and replication, with the same setup, display and reporting conventions in every mode.
- Are advanced modes such as kurtosis random, gunfire, RSTD and MIMO available now, or only as future add-ons?
- Ask for a live demonstration of each mode you need. Shipping capability can be demonstrated; roadmap items cannot.
- Can I add modal, acoustic or rotating machinery analysis without changing platforms?
- The best answer is yes, on the same hardware and data files, licensed as software options.
- Does the system support custom profiles and automated sequencing?
- Look for user-defined profiles, imported specifications and an automated sequencer that can run different test types back to back.
- Which test standards has the system been used with?
- Expect a direct list, for example MIL-STD-810, DO-160, IEC 60068, ISO, DIN and ASTM methods, and ask to see a test set up to the standard you use most.
2. Hardware: architecture, channels, resolution and dynamic range
The controller hardware defines what you can measure and how far you can trust the result.
Architecture: centralized or distributed

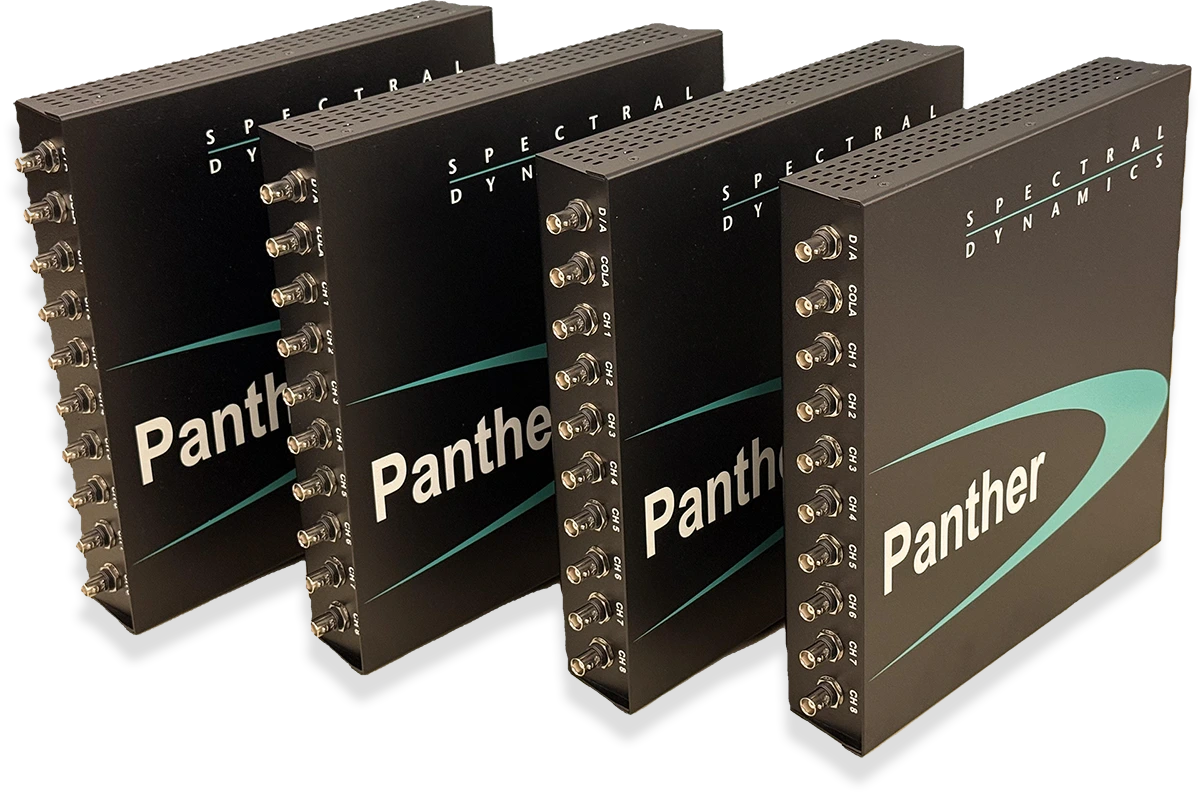

Some controllers put all channels in one chassis. Others use a distributed, network-based architecture in which modules connect over Ethernet (or USB) and can sit next to each shaker or be grouped together. A distributed design shortens sensor cable runs, simplifies multi-shaker layouts and lets the system grow module by module. What matters is how modules are synchronized: ask for the stated channel-to-channel timing accuracy and phase match across modules, not just within one chassis.
Number of input channels
Many labs start at 4 to 8 channels for basic testing and grow to 16, 32, 128 or more for multi-point monitoring, multi-shaker and large structural tests. Modular expansion lets you add channels without replacing the system.
ADC resolution and true dynamic range
24-bit analog-to-digital converters with at least 110 dB of true, end-to-end dynamic range are the current standard. This lets one test capture both low-level responses and high-g events without saturation or a noise-floor limitation.
Sampling rate and filtering
Sampling rate sets the highest frequency you can control and analyze. Look for simultaneous sampling on all channels at the full rate (not time-multiplexed acquisition, which introduces phase errors), true hardware anti-aliasing filters on the inputs, and reconstruction filters on the outputs. Labs testing to high frequency should confirm the maximum sample rate available in control, not only in analysis.
Per-module processing
Dedicated processing in each module, such as an embedded FPGA, keeps acquisition and filtering deterministic as channel count grows, and helps maintain phase match across large systems.
Signal conditioning
- IEPE/ICP constant-current excitation for accelerometers
- TEDS (IEEE 1451.4) automatic sensor recognition
- Selectable AC/DC coupling and multiple input ranges
- Tachometer inputs for rotating machinery work
- A COLA (constant output level adapter) output for sine work with external analyzers
- Built-in calibration traceable to national standards
- What is the true usable dynamic range, not just the converter resolution?
- A credible answer is a measured, end-to-end figure of roughly 110 to 120 dB with the measurement conditions stated. Figures well above 130 dB usually describe the converter alone.
- How are modules synchronized, and what is the phase match between channels in different modules?
- Expect a stated timing accuracy (sub-microsecond) and a channel-to-channel phase specification that holds across the whole system.
- How many channels do I need today, and how do I expand?
- Look for expansion by adding modules to the existing system, with no change to software or test files.
- Does the system keep full sampling rate on all channels at once?
- Yes, with simultaneous sampling and hardware anti-aliasing on every channel.
- Is signal conditioning built in?
- IEPE, TEDS, coupling selection and multiple ranges should be standard on every input, without external conditioning hardware.
3. Control algorithms and loop performance
Control quality depends on the closed-loop algorithms and how fast and how stably they respond. Poor control leads to over-testing, under-testing, damaged hardware and invalid results.
Loop speed and stability
Fast, deterministic loop updates give stable, responsive control. Equally important is stability over long tests: endurance and qualification tests can run for hours or days, and the loop must stay stable as the article and fixture change.
Random control
Beyond spectral shaping, evaluate kurtosis control for non-Gaussian testing, sigma clipping, time-history replication, degrees-of-freedom and averaging control, and adaptive equalization for complex fixtures.
Sine control and tracking filters
Sine testing depends on tracking filters that follow the drive frequency precisely and reject harmonics and noise, and on accurate amplitude control at resonances and in highly non-linear structures.
Real-time digital resampling
Real-time resampling lets the controller work at the sample rate best suited to the test and convert data between rates without loss, which matters for replication and multi-rate recording.
Shock and SRS synthesis
For SRS testing, the synthesis method determines accuracy. Look for iterative optimization and automatic waveform adjustment that reach the target spectrum within tolerance while respecting shaker displacement, velocity and force limits.
Limiting, notching and force limiting
Multi-channel limiting and notching protect resonant components by reducing the drive where any monitored response reaches its limit. Force-limited vibration adds limits on measured input force.
MIMO control
For multi-shaker or multi-axis tests, ask how the controller handles cross-coupling between drives, how it transforms between physical channels and degrees of freedom, and how it reports which limit or channel is holding control at each frequency.
- Does the system support kurtosis control for non-Gaussian random?
- A strong answer includes simultaneous control of the spectrum and kurtosis, with the achieved kurtosis displayed live.
- How does the system handle non-linear responses and resonance shifts?
- Look for adaptive equalization in random and precise tracking filters plus resonance tracking in sine.
- How many channels can limit or notch at the same time?
- Any or all monitored channels, with the controlling channel shown at each frequency.
- Is force-limited testing supported?
- It should be available as a standard limiting option using force gauge inputs.
- How stable is control over long-duration tests?
- Ask for results from multi-hour endurance runs and how the system responds to gradual changes in the article.
4. Safety: protecting test articles, shakers and people
A vibration controller must protect three things: the test article, the shaker and the people in the lab. Inadequate safety systems lead to damaged specimens, damaged shakers and risk to operators.
Essential safety features
- Real-time multi-parameter monitoring of control and response levels, drive voltage, displacement and system health
- Intelligent abort logic that distinguishes legitimate responses from dangerous conditions
- Hardware watchdogs that act even if the software fails
- Graduated responses: drive reduction for minor excursions, immediate shutdown for dangerous ones
- Sensor failure detection for open, shorted or overloaded inputs
- Emergency stop integration and amplifier interlocks
- Rate-of-change limits on level increases
- Post-abort data capture and safety event logging for failure analysis
- Which parameters are monitored, and how often?
- All control, response and drive channels every control loop, during every phase including pretest and equalization.
- What happens when a limit is approached versus exceeded?
- Graduated action: warnings and drive reduction first, then a controlled shutdown, with the cause logged.
- How are sensor failures handled?
- Immediate detection, a clear message naming the channel, and a safe shutdown before the drive can run away.
- Is data recorded through an abort?
- Yes. Recording should continue through the abort so the event can be analyzed.
5. Data handling, recording and analysis
Modern controllers are also data acquisition systems. How they capture, analyze and manage data affects test quality, troubleshooting and compliance records.
- Continuous, gap-free recording on all channels for the whole test, in every test mode.
- Multiple independent data streams recorded at different sample rates at the same time, so critical channels can be recorded fast and auxiliary channels slow.
- Concurrent control and analysis without slowing the control loop.
- Post-test tools: time-history playback, spectral and statistical analysis, comparisons and automated reports.
- Standard export formats such as ASCII, UFF and MAT-file, plus conversion between sample rates.
- An organized test library for setups, data and reports, instead of scattered files.
- Is gap-free recording available in all test modes?
- Yes, in every mode, on all channels, for the full duration of the test.
- Can different channels be recorded at different sample rates at the same time?
- The strongest answer is multiple independent streams with independent rates.
- Can I analyze data while the test runs?
- Yes, with live analysis that does not interrupt control.
- Which export formats are supported?
- At least ASCII, UFF and MAT-file, with tools to convert sample rate and format.
6. Ease of use, workflow and automation
Usability drives productivity, training cost and operator error.
- Clear, intuitive interface with a logical workflow and few steps for common tasks
- Templates that make standard tests repeatable
- Touch-screen and remote wireless tablet operation, for example monitoring a test from a tablet on the lab floor
- Automation: test sequencing, scripting and unattended operation
- Operator and engineer modes
- Native-language interface and help for international labs
- Built-in help and AI-assisted technical support that can explain settings and diagnose problems
- How long does it take to set up a standard random test?
- Ask the vendor to do it in front of you. A well-designed system takes minutes from a template.
- Can I monitor and control tests remotely, including from a tablet?
- Look for secure remote monitoring and control from a wireless tablet or laptop on the lab network.
- Can operators run routine tests without an engineer?
- Yes, with locked templates and a simplified operator mode.
- Is the interface available in our language?
- Ask which languages are available for both the interface and the help system.
7. System integration: shakers, chambers and enterprise
- Shaker and amplifier compatibility: output voltage ranges, interlocks and support for electrodynamic and hydraulic shakers from any manufacturer.
- Environmental chamber control for combined temperature, humidity and vibration testing through standard protocols.
- Remote control interface so external test executives and automation systems can command the controller.
- Network and IT integration: standard networking, centralized data storage and LIMS connectivity.
- Will the controller work with our existing shakers and amplifiers?
- A good answer is yes for any make, with a list of installations using the same shaker type.
- Can an external system command the controller?
- Look for a documented remote control interface for automated test sequencing and equipment integration.
- Can it control our environmental chamber?
- Ask which chambers and protocols are supported and whether chamber profiles can be sequenced with vibration tests.
8. Scalability, upgrades and lifecycle
- Channel expansion from a single-shaker benchtop system to large multi-shaker installations without replacing hardware
- Software growth: new test types added as licensed options on existing hardware
- Backward compatibility of hardware, test setups and data files
- Regular updates and a published roadmap
- Field upgrades without returning hardware to the factory
Product lifecycle matters as much as features. Ask how long the manufacturer has supported its previous controller generations, and whether test setups and data from those generations still open in the current software.
- What is the maximum system size and how do I get there?
- Expect a clear path by adding modules, with the tested maximum channel count stated.
- How long has the manufacturer supported earlier generations?
- Decades of support for installed systems is the strongest evidence of future support.
- Are software updates included?
- Ask what the maintenance agreement covers and how often updates ship.
9. Service, support and training
- Application engineers who understand your tests, not only the software
- Fast technical support and remote diagnostics
- Thorough manuals, tutorials and technical notes
- On-site, factory and online training
- Calibration services and spare parts availability
- Support in your region and language
Pre-sales support is a good preview of post-sales support. Vendors that give detailed technical answers and real demonstrations before the sale usually do the same after it.
- How fast is technical support, and who answers?
- Ask for typical response times and whether support engineers can connect remotely to diagnose problems.
- What training is included?
- Look for on-site commissioning training, plus online tutorials covering each test type.
10. Total cost of ownership
The lowest purchase price rarely gives the best total value. Include:
| Cost area | What to include |
|---|---|
| Initial investment | Hardware, software licenses and options, installation, commissioning, initial training |
| Ongoing costs | Maintenance and support agreements, calibration, spares, refresher training |
| Hidden costs | Long training times, downtime, integration work, extra hardware for missing features, a second system for analysis |
| Expansion | Cost of adding channels, shakers and test types; whether expansion requires replacement |
- What will it cost to add channels or test types later?
- A transparent price list for modules and software options, with no replacement of existing hardware.
- Are there recurring license or subscription fees?
- Get the answer in writing, including what happens if a maintenance agreement lapses.
Summary checklist: evaluating vibration test controllers
- Applications: every required test mode, including advanced modes, in one software suite, with analysis on the same platform.
- Hardware: distributed, scalable architecture; verified end-to-end dynamic range of at least 110 dB; tight synchronization and phase match across modules.
- Control: stable, fast loops; kurtosis, tracking filters, multi-channel limiting and notching, force limiting and MIMO where needed.
- Safety: real-time, multi-parameter, graduated protection with logged events.
- Data: gap-free recording in every mode, independent stream rates, standard exports.
- Usability: intuitive interface, templates, automation, remote tablet operation.
- Integration: any shaker, chambers, remote control interface, enterprise IT.
- Scalability: grows by adding modules and software options.
- Support: a manufacturer with a long track record and accessible application engineers.
- Value: transparent total cost of ownership over the system's life.
Frequently asked questions
What is the best vibration test controller?
No single controller is best for every lab. The best choice is the system that covers all of your test types in one software suite, delivers verified dynamic range of at least 110 dB, scales in channels without replacement, and is backed by a manufacturer with a long support record. Use the checklist above to compare systems on the same terms, and ask each vendor to demonstrate your most difficult test.
What is the difference between a vibration controller and a vibration isolation system?
A vibration controller (vibration test controller or shaker controller) drives a shaker to reproduce a specified vibration on a test article. A vibration isolation system uses mounts, isolators or dampers to reduce vibration reaching equipment or a structure. Test labs buying equipment for qualification testing need a vibration controller.
How much dynamic range does a vibration controller need?
At least 110 dB of verified, end-to-end dynamic range is the current benchmark for 24-bit systems. Realistic achievable performance for the full measurement chain is about 110 to 120 dB; higher figures usually describe the converter alone.
How many channels does a vibration controller need?
Simple single-shaker tests often use 4 to 8 channels. Multi-point monitoring, multi-shaker tests and large structures can need 32, 64, 128 or more. Choose a system that expands by adding modules.
What is kurtosis control in random vibration testing?
Kurtosis control shapes the peak distribution of a random signal while holding its spectrum. Real road and flight environments often contain more high peaks than Gaussian random, and kurtosis control reproduces them, giving a more realistic and often faster durability test.
What is SRS testing on a shaker?
Shock response spectrum (SRS) testing synthesizes a transient waveform whose shock response spectrum matches a specified target, so a shaker can reproduce the damage potential of pyrotechnic or mechanical shock within its displacement and force limits.
What is sine-on-random testing?
Sine-on-random superimposes one or more sine tones, fixed or swept, on a broadband random background. It simulates environments such as rotating machinery, helicopters and propeller aircraft, where tonal vibration rides on broadband vibration.
Do I need MIMO control?
MIMO (multiple-input multiple-output) control is needed when several shakers drive one article, or when one article is controlled in several axes at once. Most qualification testing is single-shaker MISO control, so choose a platform that does single-shaker testing well and can add MIMO when needed.
Can one system do vibration control and modal or acoustic analysis?
Yes. Some controllers run modal analysis, acoustic analysis, rotating machinery analysis and balancing on the same acquisition hardware, which avoids buying and maintaining a second system.
What standards do vibration test controllers support?
Common standards include MIL-STD-810 (including gunfire shock), RTCA DO-160, IEC 60068, ISO, DIN and ASTM. Ask vendors to demonstrate the specific methods your programs require.
How Panther addresses this checklist
Panther, the vibration test controller from Spectral Dynamics, was designed around these criteria:
- Applications: random with kurtosis control, sine, RSTD, classical shock, SRS, sine-on-random, random-on-random, mixed mode, time-domain replication, gunfire and MIMO random and sine, in one suite, plus modal, acoustic, rotating machinery analysis and multi-plane balancing.
- Hardware: distributed Ethernet-based modules with an FPGA in each, time-stamp synchronization, 24-bit ADCs, more than 110 dB dynamic range, 8 to 128 channels, sample rates up to 262 kHz.
- Control: patented real-time tracking filters and digital resampling, multi-channel limiting and notching, force-limited testing.
- Data: gap-free stream-to-disk in every application, with multiple independent data streams at different sample rates.
- Usability: touch and remote tablet operation, native-language interfaces, and an AI assistant for technical support.
- Track record: Spectral Dynamics pioneered closed-loop digital vibration control in 1969 and has more than 60 years in vibration control and data acquisition.
