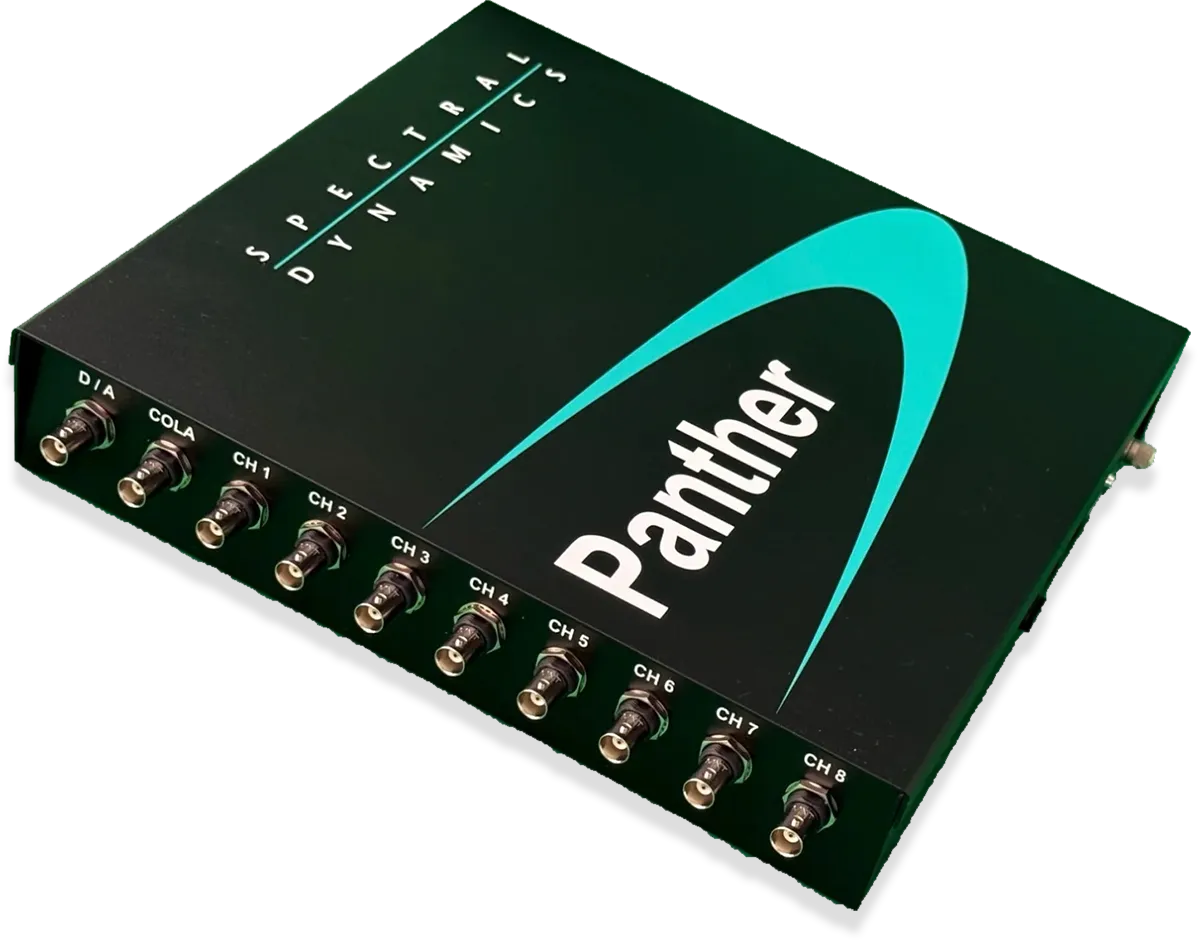

PANTHER Vibration Control System — 8 to 128 Channel MIMO Controller

Optimized Hardware for Mission-Critical Testing

Industry-leading vibration testing with Panther: easiest to use interface, industry best hardware, real-time control, expandable hardware. Sine, random, shock, modal, and RMA analysis. The Panther ensures exceptional channel-to-channel phase match on the order of 0.01° through its single master clock architecture, delivering a guaranteed specification of ±0.1° channel-to-channel phase match to 100 kHz for unsurpassed fidelity across all channels. This accuracy is maintained across multiple chassis with optional sync cables to give the user a reliable upgrade path to larger channel count systems when needed.

The heart of the Panther is a state-of-the-art FPGA / multi-core ARM processor which includes on-chip memory, caches, a rich set of peripherals (including Ethernet, USB, and SDIO), and external memory interfaces to support DDR memory. An Advanced eXtensible Interface (AXI) standard facilitates high-bandwidth and low-latency communication between the ARM and FPGA. This allows the design to offload computationally intensive tasks from the ARM processor to the high-speed, parallel FPGA.

By merging the flexibility of an FPGA with the power of an ARM processor, the Panther achieves a best-in-class high performance-per-watt ratio, which provides for a low carbon footprint. It excels at tasks requiring both advanced processing and high-speed, parallel data manipulation, such as digital signal processing.

Spectral Dynamics leads the way with the introduction of Panther, providing vibration technicians with cutting edge hardware technology and when linked with Panthers powerful suite of application software and abundant features, will insure you run all of your vibration tests in safe, accurate, reliable manner.

Feature-Rich Application Suite

Panther's MISO Control Software empowers users with a versatile array of test profiles tailored to replicate diverse environmental challenges, including Sine, Random, Shock, Sine on Random, Random on Random, Shock Synthesis, and Road Simulation, all with advanced 64-bit software architecture. These capabilities allow for precise simulation of operational vibrations, enabling engineers to identify potential failures early in the development cycle. Drawing from Spectral Dynamics' long history of innovation—rooted in the creation of the first vibration control system— this software suite offers intuitive controls and advanced algorithms that ensure repeatable, high-fidelity results, making complex testing accessible while upholding the rigorous standards that have made the company a trusted partner for over six decades.

Complementing its control prowess, Panther's Analysis Software provides comprehensive tools for post-test evaluation and deeper insights, featuring FFT, 1/n Octave, Statistics, Modal Data, Acquisition, Playback, Transient Capture, and Rotating Machinery analysis. These modules enable users to dissect vibration data with exceptional detail, uncovering subtle patterns and resonances that inform design improvements. The engineers behind the first PC Windows based vibration control system infused this software with modular flexibility, allowing seamless integration with existing workflows and expandable data handling to support everything from routine quality checks to intricate research projects.

Safety remains paramount in every vibration test conducted with Spectral Dynamics' systems, as the company's eighty-plus years of experience underscore the critical need to mitigate risks during high-energy simulations. Panther incorporates built-in safeguards, such as automated abort sequences, real-time monitoring, and user configurable limits, to prevent over-testing that could damage equipment or compromise operator well-being. This emphasis on safety—honed through the development of foundational technologies like the first vibration control system—ensures that tests not only yield accurate data but also adhere to the highest industry standards, protecting both personnel and investments in an era of increasingly rigorous regulatory demands. With Spectral Dynamics, reliability isn't just engineered; it's a legacy.
